Copy Elements from Floor to Floor

RISAFloor v13.0 now includes the added ability to graphically copy elements from one floor to another floor. This feature will expedite the modeling process by giving designers more control over which beams, columns, walls and joints are carried over to another floor. To access the tool, click on the Copy Selected Items button to open the dialog box.

Image 300x67 2x

Once the dialogue appears, choose the Copy to Another Floor radio button.


To graphically copy specific elements to another floor within RISAFloor, first select the elements that you would like to copy. In the below example, columns (3-E) and (4-E), beams M15, M16 and M17 and wall WP1 are selected to be copied to the floor above the current floor.

Image3 300x283 2x

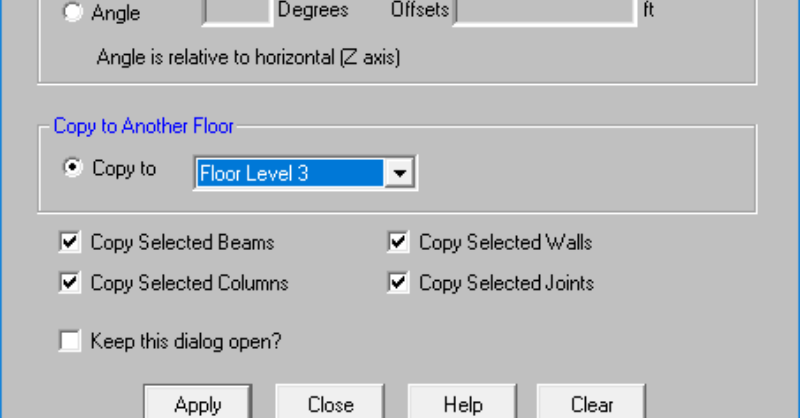

Click the Copy Selected Items button, selecting the floor above the current floor (Floor Level 3), while also selecting which element types (beams, columns, wall and joints) you want to copy. Once the selection is made click Apply.


The selected items will now appear on Floor Level 3.
