Stadium Structural Design: Crowd Loads, Retrofits, and RISA Tools

World Cup stadiums are a stress test for structural design. High live loads, dynamic crowds, irregular geometry, and retrofit constraints all show up in one project. For structural engineers, these venues are a perfect case study in how analysis and design tools need to work together.

1. Crowd loads, vibration, and serviceability

At tournament scale, it’s not just about “meeting code” for live loads—serviceability and vibration performance become critical in concourses, seating tiers, and long‑span elements.

Typical checks engineers run include:

• Vertical and lateral live load combinations for tiered seating and concourse framing.
• Vibration checks on cantilevered slabs, stairs, and lightweight steel members (comfort criteria for rhythmic crowd activity).
• Deflection limits for long‑span beams and trusses supporting roofs, signage, or rigging.

A common RISA workflow:

• Use RISAFloor to lay out seating bowl and concourse framing, assign appropriate live loads (including crowd and reduction rules), and check vibration analysis and gravity design.
• Push the model to RISA‑3D for global analysis and lateral behavior of the frame/diaphragm system.
• Use color plots, member detail reports, and deflection envelopes to verify serviceability and comfort performance before locking in framing decisions.

Engineers can quickly iterate framing schemes and see how changes in span, stiffness, or system type affect both strength and serviceability.

2. Retrofit and expansion: modeling the real existing structure

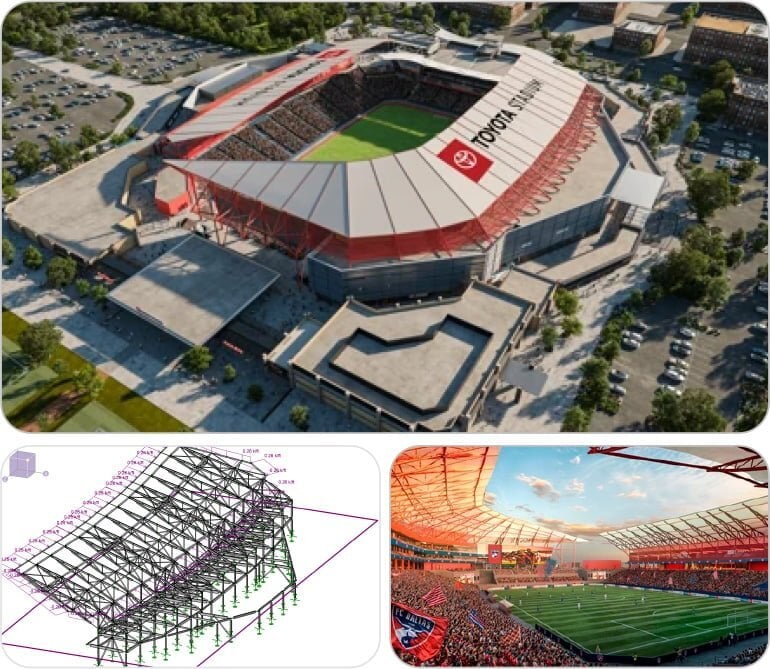

Many World Cup‑era venues are upgrades rather than new builds. The Toyota Stadium improvements project is a good example of how RISA supports retrofit work in constrained environments.

Key steps engineers typically take:

• Build a baseline RISA‑3D model of the existing structure, using as‑built drawings and field verification.
• Separate load cases and combinations for “existing,” “proposed,” and “construction/staging” conditions to understand demand shifts as work progresses.
• Use code‑based demand/capacity ratios to identify members that are close to or over capacity under new loading scenarios.

With that information, teams can:

• Introduce new framing into the same model (additional beams, braces, or transfer elements).
• Evaluate whether added program—like new amenities or seating—requires strengthening existing members or adding new systems.
• Use RISAFoundation to check whether existing footings or new foundations can handle increased reactions.

Instead of treating the existing structure as a black box, RISA lets engineers quantify how each proposed change affects global and local behavior.

3. Multi‑use venues: planning for non‑match events

Stadiums quickly become multi‑use venues. Concerts, fan festivals, and temporary installations load the structure differently than football matches.

Structural questions include:

• How do point loads from stages and rigging affect roof truss behavior?
• Do temporary platforms or seating layouts violate serviceability or vibration limits?
• Are there alternate load paths under non‑standard loading (e.g., heavy equipment on concourses)?

Using RISA‑3D, engineers can:

• Introduce additional load cases for concert configurations (rigging, stage framing, localized live loads).
• Run combinations that overlay match‑day and concert scenarios to find worst‑case demand.
• Use reaction reports and member force plots to communicate constraints to event planners (e.g., “no rigging in these bays”).

This makes multi‑use planning a normal part of the analytical process instead of a last‑minute check.

4. Geometry and sightlines: coordinating with architecture

Sightlines and roof coverage drive stadium geometry, which in turn drives structural complexity. Long cantilevers, raking beams, and non‑orthogonal grids are common.

Practical RISA tactics:

• Use custom coordinate systems and graphical rotation tools in RISA‑3D to keep member orientation and loading intuitive in raked or curved seating bowls.
• Define diaphragms in RISAFloor/RISA‑3D where appropriate, run checks with semi‑rigid behavior in RISAFloor integrated models if diaphragm flexibility is a concern.
• Share deflection and force plots with architects to explain depth requirements, brace locations, or support positions that protect sightlines while maintaining performance.

This turns stadium design into an iterative, multi‑disciplinary process where structural behavior is visible and negotiable—not just a set of numbers in a report.

RISA in the stadium toolkit

For stadiums at any scale, an integrated workflow matters:

• RISAFloor for gravity framing, vibration, and concourses.
• RISA‑3D for global analysis and lateral systems.
• RISAFoundation for foundation design under complex reaction patterns.
• RISAConnection for steel connection design once the system is locked in.
