What Is a Cantilever Beam?

Key Takeaways

• Support Profile: Fixed at one end (restrains vertical, horizontal, and moment).
• The "Smile" vs. "Frown": Unlike standard beams that sag (tension on the bottom), cantilevers undergo negative bending. This means the top of the beam stretches (tension) while the bottom compresses.
• Leverage Factor: The farther a load is from the fixed support, the higher the bending moment and deflection.
• Efficiency: They enable overhanging structures without the need for columns or bracing underneath.

What is a Cantilever Beam?

In structural engineering, a cantilever beam is a horizontal member that is supported at only one end and remains free at the other. Unlike a simply supported beam, which rests on two points, a cantilever relies on a "fixed" or "encastré" support to maintain stability.

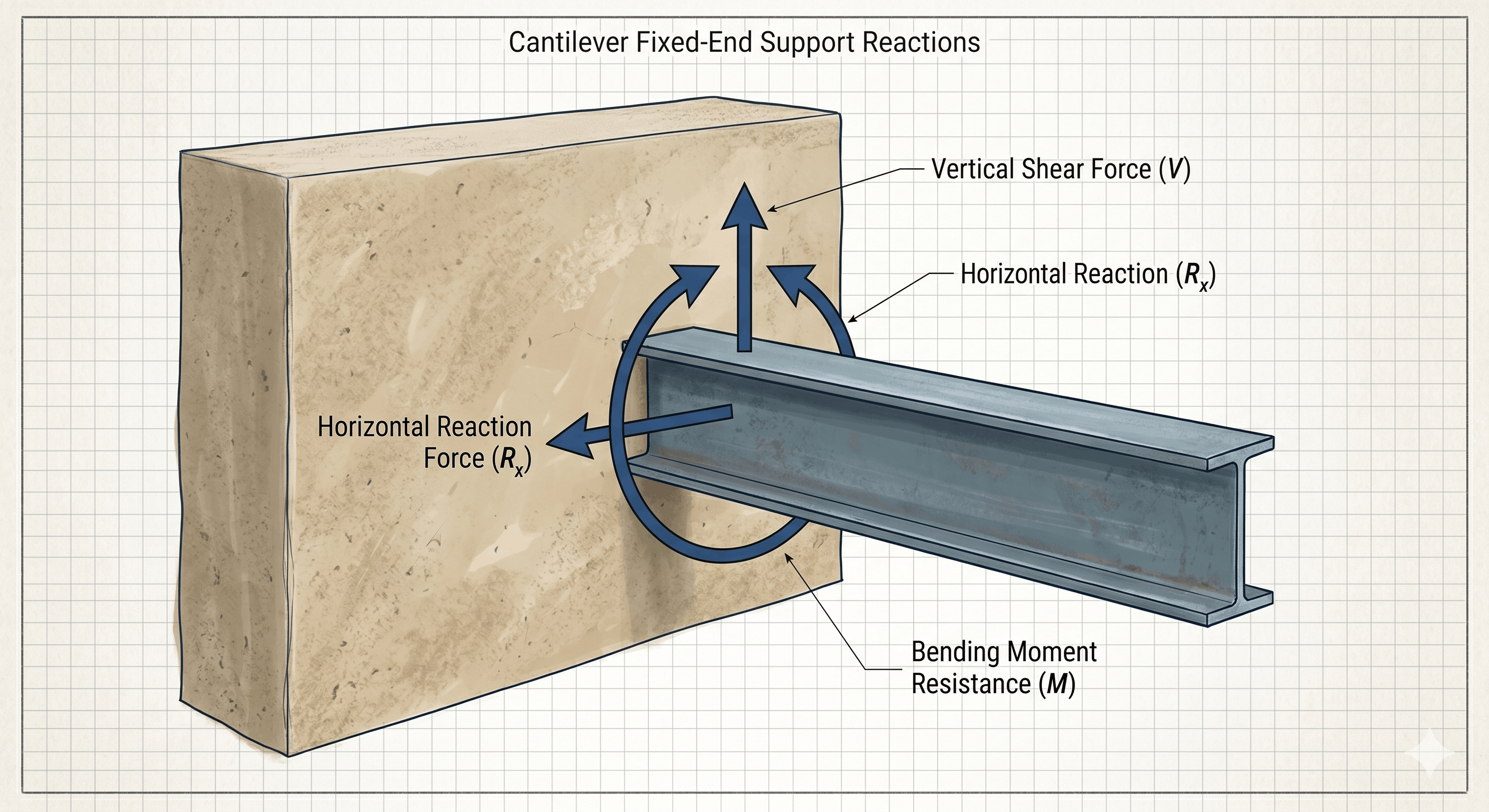

To prevent the beam from rotating or "diving" at the free end, the fixed support must be robust enough to resist three distinct types of forces:

1. Vertical Shear: The downward force of the load.
2. Horizontal Reaction: Resistance against lateral movement.
3. Bending Moment: The internal rotational force that keeps the beam horizontal despite the leverage of the load.

The Cantilever Beam in Practice

In a field often defined by vertical supports and load-bearing walls, the cantilever is the primary tool for achieving structural "reach." It is a deliberate engineering choice to prioritize functionality or aesthetics by eliminating the need for intermediate piers or columns. This utility spans from simple residential details to some of the most complex infrastructure on the planet.

1. Architectural Projections and Balconies

In residential and commercial building design, the cantilever is most frequently used to extend floor plates beyond the building's envelope. Overhanging the floor joists or concrete slabs past the exterior wall allows engineers to create outdoor spaces without obstructing the ground-level pathway or view.

This is achieved by utilizing a "backspan", securing the interior end of the beam deep into the structure to counteract the leverage (uplift) generated at the balcony’s edge.

2. Cantilever Bridge Systems

Cantilevers are the preferred solution for bridging vast spans over deep valleys, active waterways, or environments where placing intermediate supports is physically or economically impossible. A cantilever bridge typically consists of two massive arms anchored on opposite piers, extending toward each other to meet in the center.

In many cases, these arms support a smaller, "suspended span" between them, allowing the bridge to handle massive live loads while maintaining a high degree of clearance for ships or terrain below.

3. Highway Signage and Traffic Gantries

Functionality dictates that traffic signals and directional signage must hang directly over active lanes of travel. A cantilevered gantry allows for this precise positioning while keeping the primary support column safely off the road shoulder.

Because these structures are subject to intense wind loads and vibrations, they are often designed with tapered steel arms to manage the high bending moments focused at the base connection.

The Physics: Deflection and Moments

Because a cantilever is supported only on one side, it is inherently more susceptible to deflection (sagging at the tip) and vibration than other beam types.

Bending Moment

In a simple cantilever with a point load (P) at the very end, the maximum bending moment occurs exactly at the face of the support:

This creates a massive amount of stress at the fixed joint, which is why cantilever connections must be significantly more "beefy" than standard pinned connections.

Tension and Reinforcement

This is a critical point for concrete design: because the top of a cantilever stretches under load, the primary tensile reinforcement (rebar) must be placed at the top of the beam. If you place the rebar at the bottom (as you would for a standard beam), the concrete will crack at the top, and the beam will fail.

Design and Modeling Considerations

When moving from a hand sketch to structural software like RISA-3D, the accuracy of your model depends on how you handle the "Fixed" boundary condition.

1. Modeling the Support

In FEA software, a cantilever is modeled by setting the support node to "Fixed" (Reaction, Reaction, Reaction). If the support is modeled as a "Pin," the beam will essentially act as a hinge and "fall" in the software simulation, leading to an unstable model error.

2. Deflection Limits

Cantilevers are often governed by serviceability (deflection) rather than raw strength. Because the free end has nothing to stop it from moving, even a strong beam might sag enough to cause water ponding or architectural cracking. Engineers typically check the "L/Δ" ratio to ensure the "tip" of the cantilever stays within acceptable limits (e.g., L/180 or L/360).

3. Backspan Stability

To create a cantilever, you usually need a "backspan", the part of the beam that stays inside the building. A common rule of thumb is a 2:1 ratio: for every 1 foot of cantilever, you should have at least 2 feet of backspan anchored down to prevent the beam from "teeter-tottering" and lifting the interior floor.

Balancing Form and Force

The cantilever beam is an elegant structural solution that allows architects and engineers to defy gravity. However, this freedom comes with the responsibility of managing high moments at the support and controlling deflection at the tip. Whether you are designing a sleek modern balcony or a highway gantry, the stability of the fixed connection is the "make or break" factor.

Are you ready to move beyond manual moment calculations? Accurate cantilever design requires a clear view of load paths and deflection shapes. Start your free trial of RISA-3D today and see how RISA-3D simplifies the modeling of complex boundary conditions and overhanging members.
