New and Improved Soil Properties

With the addition of Pile Design in RISAFoundation v10, the Soil Properties have been improved. In previous versions, you defined the default soil in the Model Settings for the entire model. Now you’ll find the Soil Definitions spreadsheet gives you control over all the soil properties in one location.

The default soil definition will be used the whole model except where another soil region is drawn in the model (shown below with the Default? checkbox).

Note: If you only have one soil profile for your entire model, you don’t need to draw a soil region. The program will use the default for the soil region.

1 Default Soil 300x57 2x

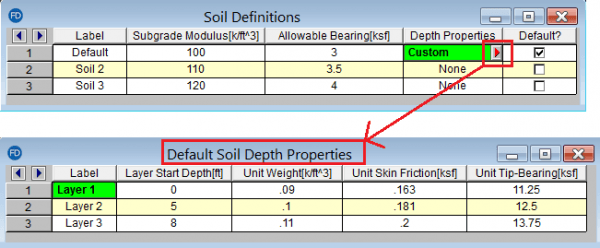

The Soil Definitions spreadsheet has the option to input the depth properties used for axial pile design of concrete, hot rolled, and wood piles. To access the Soil Depth Properties spreadsheet, just click on the Depth Properties cell and click on the red arrow.

2 Depth Properties 300x124 2x

The Soil Depth Properties spreadsheet will allow the user to enter the soil layer properties. You can refer to the project site geotechnical report to find the soil layer properties.

3 Soil Layers

In special cases where the building site has different soil properties across the site, the user can draw a soil region through the Draw or Modify Soil Regions tool:

4 Draw Soil Region 5 Soil Definition Editor 300x163 2x

The Soil Definition Editor allows the user to create a new soil definition or modify an existing soil definition. This dialog box can also be accessed to view existing soil definitions from the Soil Definitions spreadsheet. In that spreadsheet, simply click on a soil label and the red arrow in that cell and the Soil Definition Editor will open showing the soil inputs and depth properties for that definition.
