Analysis Offsets now Available

RISA-3D v15 includes "analysis offsets" which moves the centroid of the member for analysis allowing for flexibility in how members are designed. Let's use a WT brace to demonstrate how this feature can be utilized. When you model a WT brace it exists at the member centroid, which means that no bending ends up in the brace due to the fact that the brace is actually eccentric to the braced frame.

Analysis Offset 01

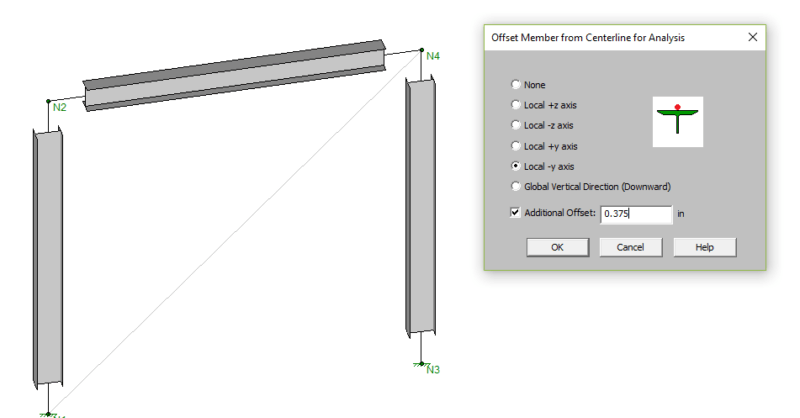

Recently, we've added a feature called “Analysis Offset” which moves the centroid of the member for analysis. In the example below the flange of the WT is bolted to a gusset that is ¾” thick, so we would want the centroid to be moved to the face of the flange, plus half the gusset thickness (3/8”):

Analysis Offset 02

With this offset applied, when the model is solved you’ll note that the brace bows out of plane, indicating that it does have bending.

Analysis Offset 03

The detail report confirms this. Note how much the Code Check value increases when the real-life bending due to eccentricity is considered in the RISA model.

Analysis Offset 04 768x318
