Seismic Factors in RISAFoundation Load Combination Generator
Seismic factors, including Omega, Rho and Ev, can now be included in automatically generated Load Combinations. Values for Omega and Rho shall be...

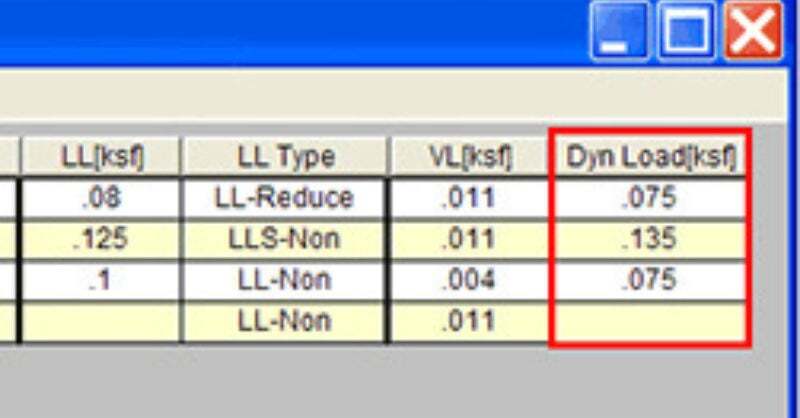

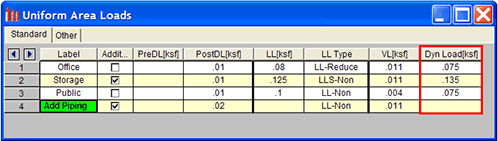

The Dyn Load represents the additional load that must be included in the calculation of the total seismic weight.
Total Seismic Weight = Self Weight + Dyn Load
RISAFloor does not include all applied loads as part of the seismic weight. For example, the super-imposed dead loads (DLPre or DLPost) are not included. Only the self weight and dyn loads are part of the total seismic weight.

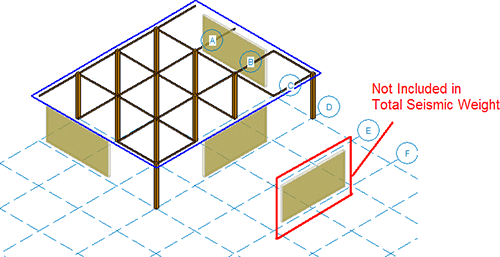

The total seismic weight used to calculate the force is calculated for each diaphragm only. Therefore, any seismic weight that is not connected to diaphragms at all (e.g. walls located outside of a slab edge) not be included in the seismic force distribution.
Adding Roof Parapets in RISAFloor
Admin : Nov 11, 2016 12:00:00 AM
RISAFloor v11 now includes the option to add parapets and parapet loading to a building.
Moving Load Point Load Generator now Available
A common question we get in tech support is “how can I verify my moving load results?” We now have a feature that will allow you to quickly...
