Improved Functionality in ADAPT-Builder v20.0.1

The latest release of ADAPT-Builder (Version 20.0.1) includes improvements to model input, colorization and result display.

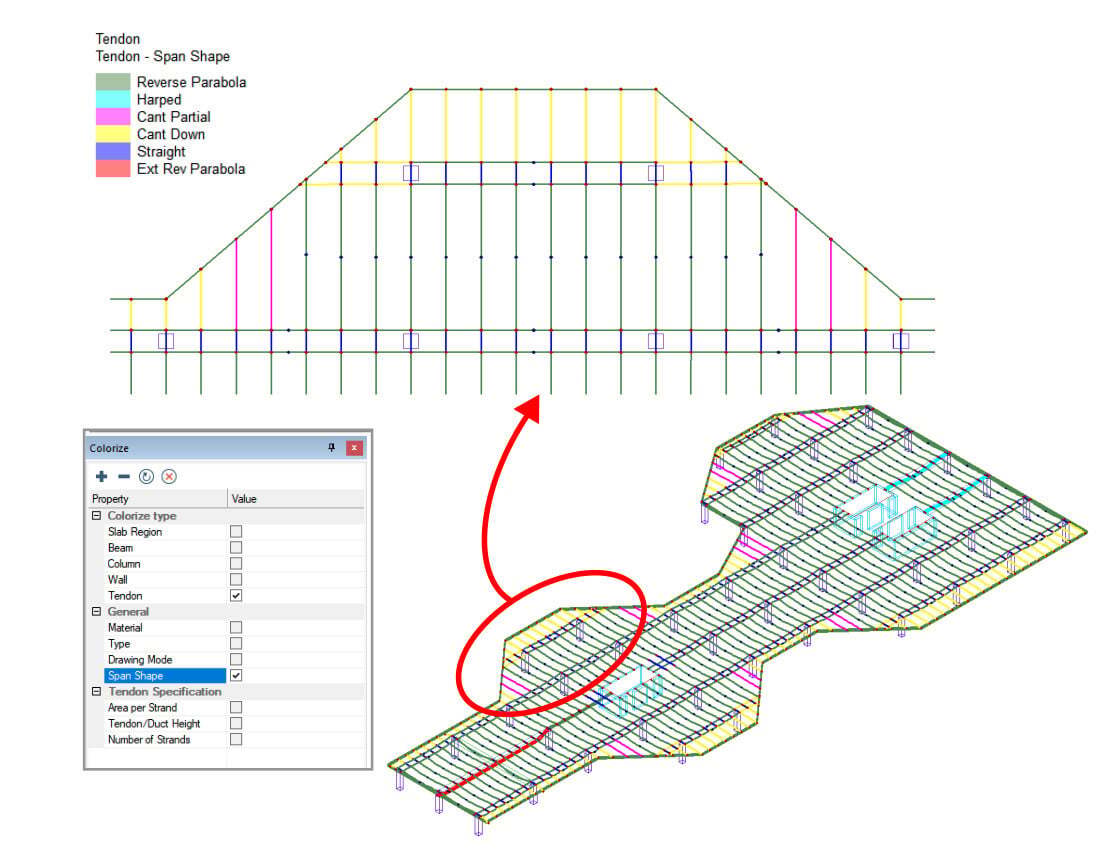

Colorize Tendon Spans by Shape

Users now have the the option to Colorize Tendon Spans by their assigned Span Shape. This improvement greatly improves user efficiency when reviewing tendon profiles to ensure proper modeling of tendons.

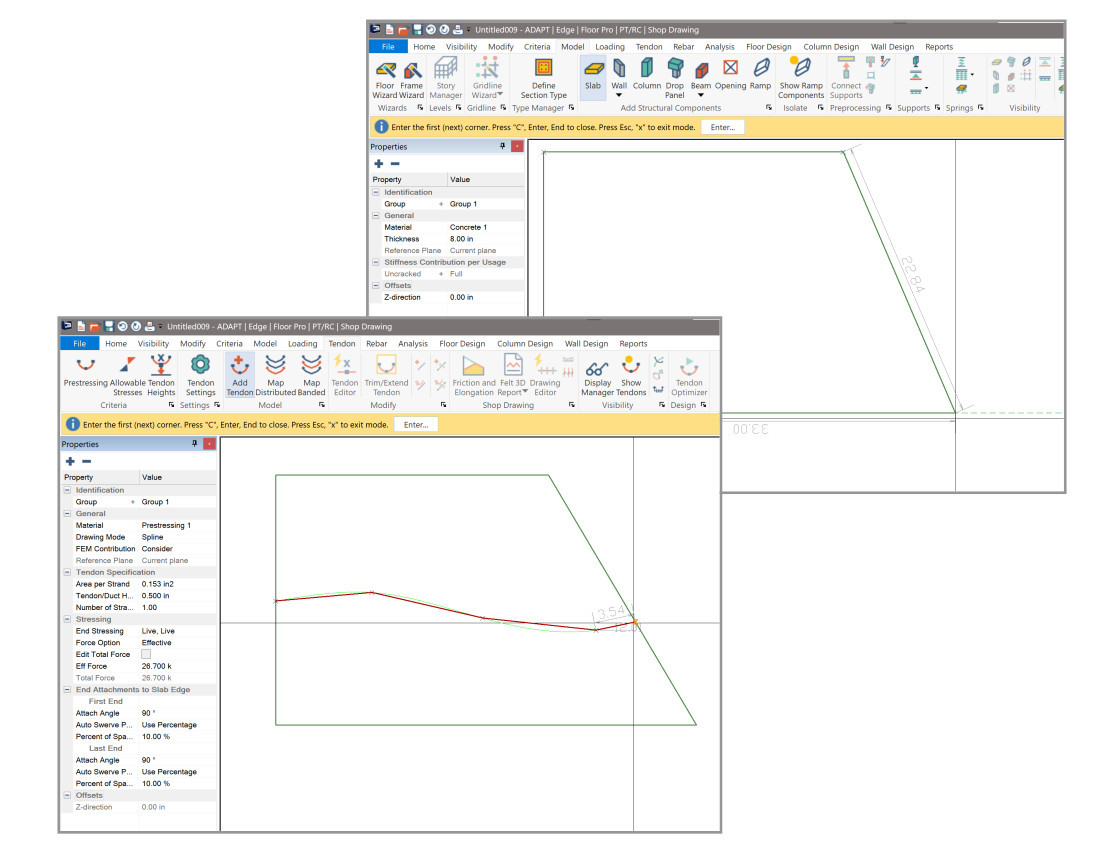

Creation Mode

When modeling a component, the program enters a new Creation Mode, where the user can modify component properties during the modeling process. Creation Mode replaces the use of the Item Properties dialog window to modify properties while modeling, adding more efficiency to the modeling process.

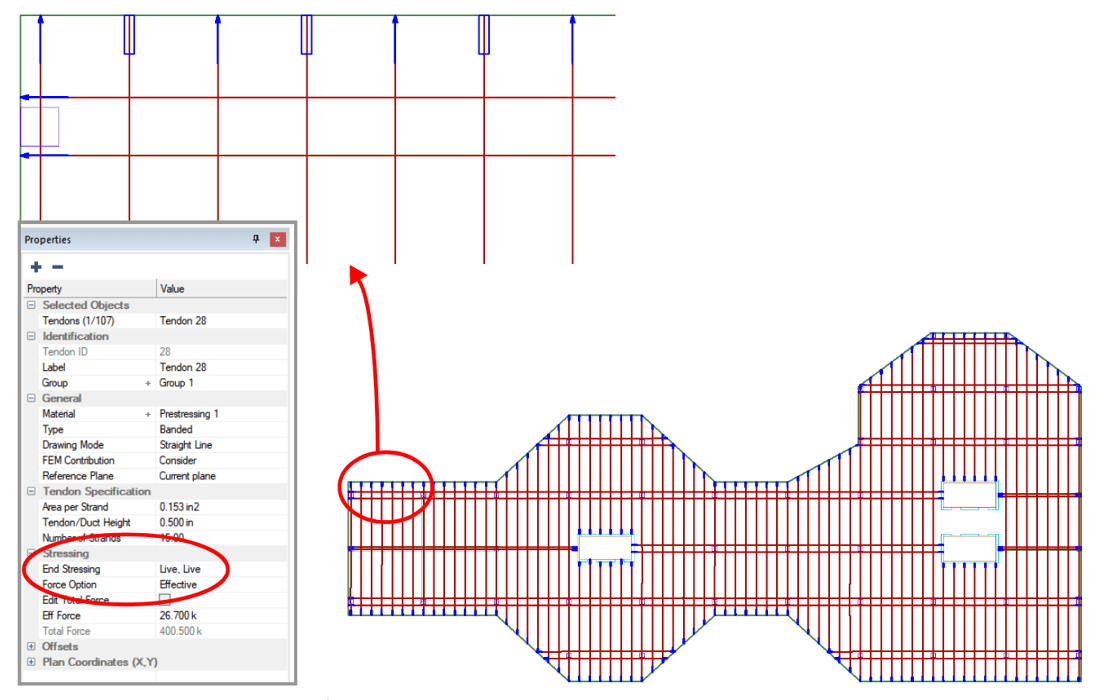

Live and Dead Ends for Effective Force Tendons

Users can now set the Stressing Ends of Effective Force Tendons. The user has the option to set the Effective Force Tendon anchors as Live:Live; Fixed:Live, or Live:Fixed for visual representation within the model as well as export to DWG/DXF file. Previously this option was limited to Calculated Tendons only.

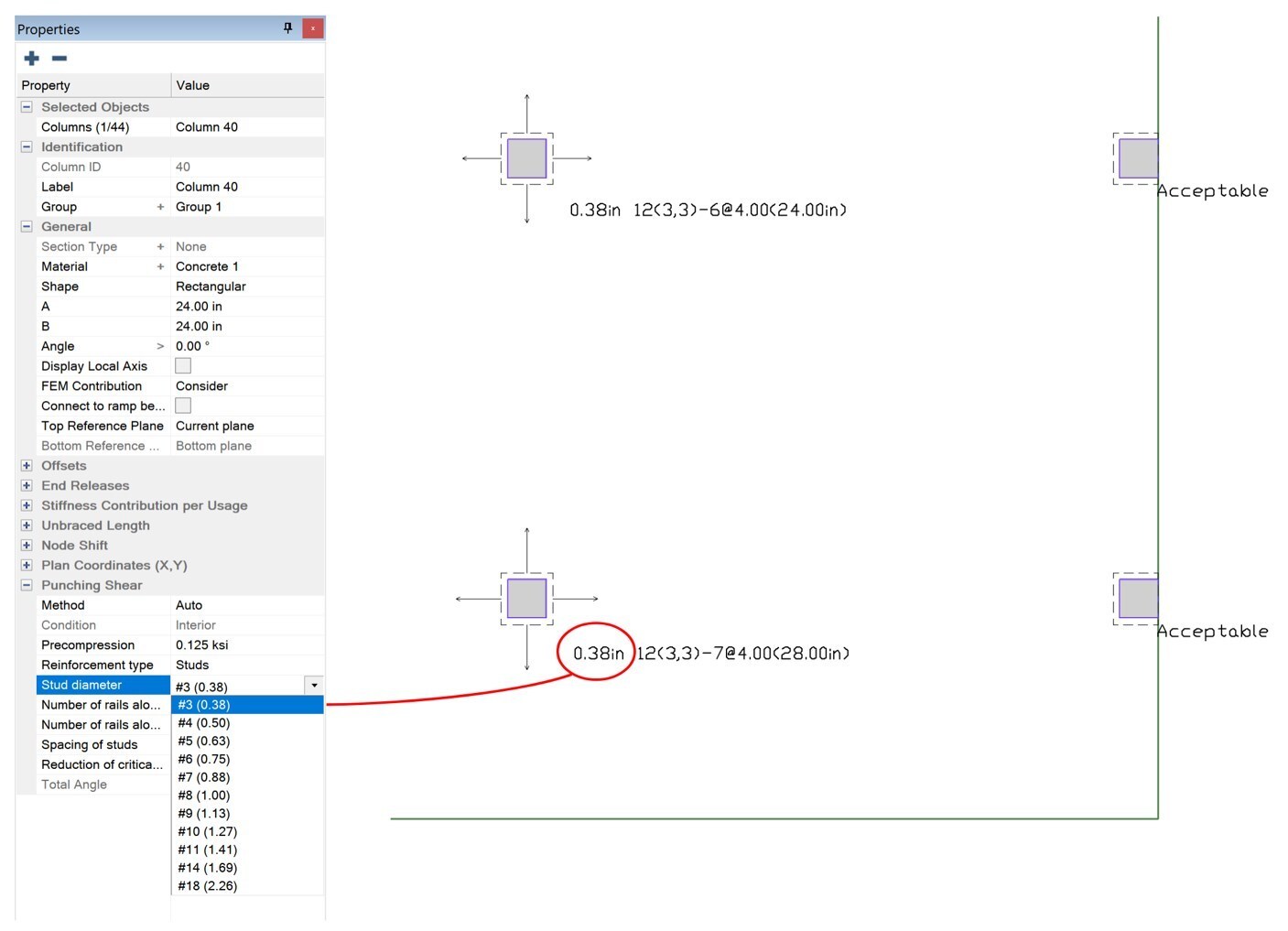

Enhanced Punching Shear Reinforcement Display and Selection

Output now includes enhanced the Punching Shear Reinforcement display to reference the Stud/Stirrup Size. Additionally, when selecting the Punching Shear Reinforcement in the Properties Grid the program now displays the Bar Number/Size as well as Stud/Stirrup Diameter.

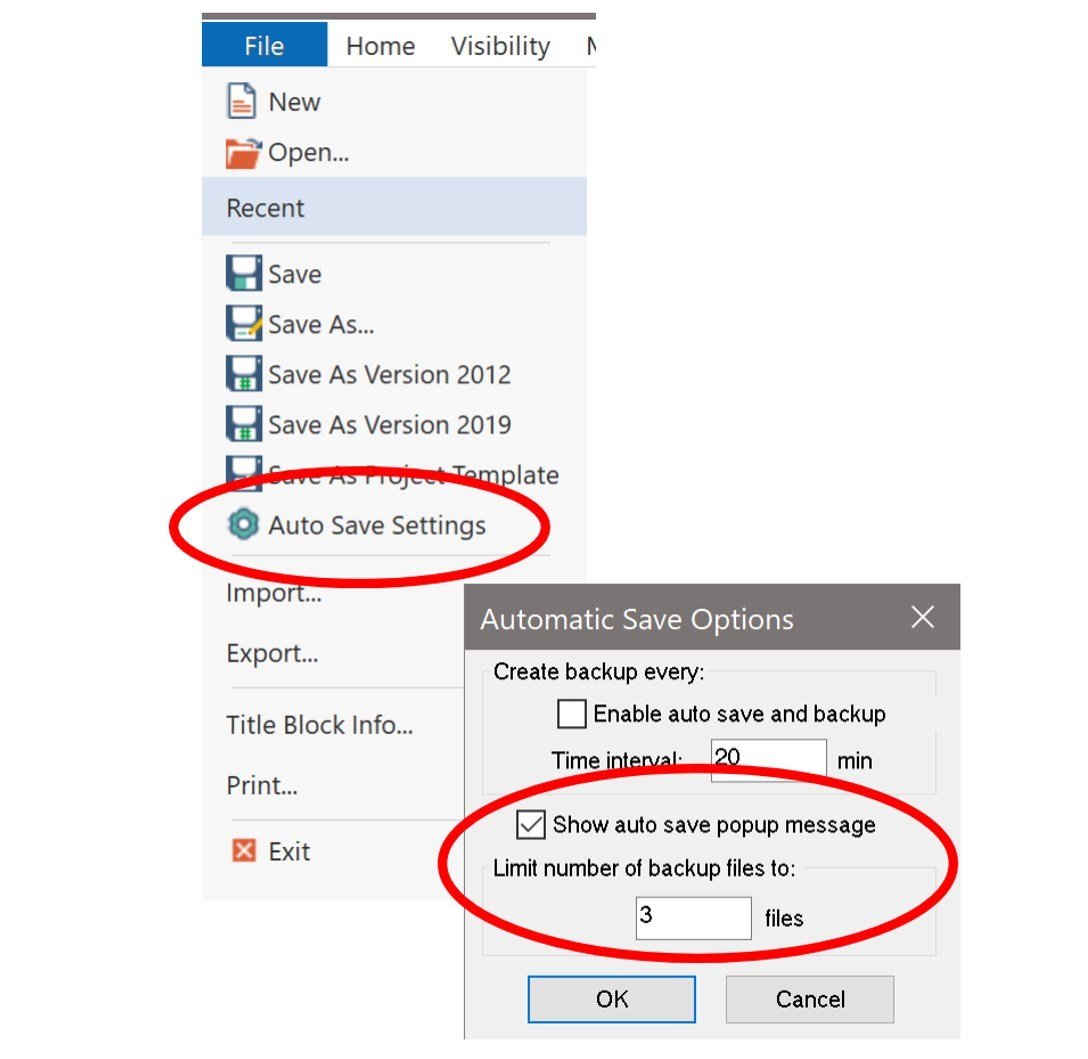

Improved AutoSave Functionality

An option has been added the AutoSave feature to specify the number of backup files saved at a time for the model. When the limit is reached the program overwrites the previous AutoSave file with a new backup file in sequence. This improves management of hard drive space used by the program.

To download the latest release of ADAPT-Builder Version 20, please visit the link below:
