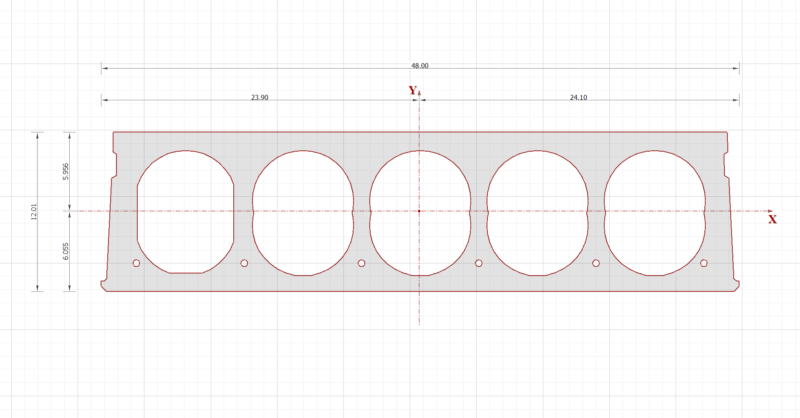

Building Cross Sections using DXF
Admin : Sep 22, 2011 12:00:00 AM
The latest version of RISASection, includes a powerful new DXF import feature. This feature allows the user to import any 2D geometry into...

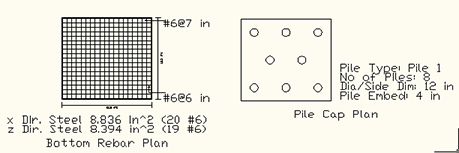

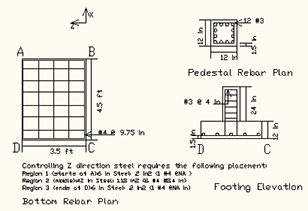

RISAFoundation has the ability to export detailed reinforcement drawings for footings, pile caps, pedestals, and slabs.
Thus, if you have a solved model in RISAFoundation you can get detailed DXF drawings. These are a great start to actually producing construction drawings for your foundations.

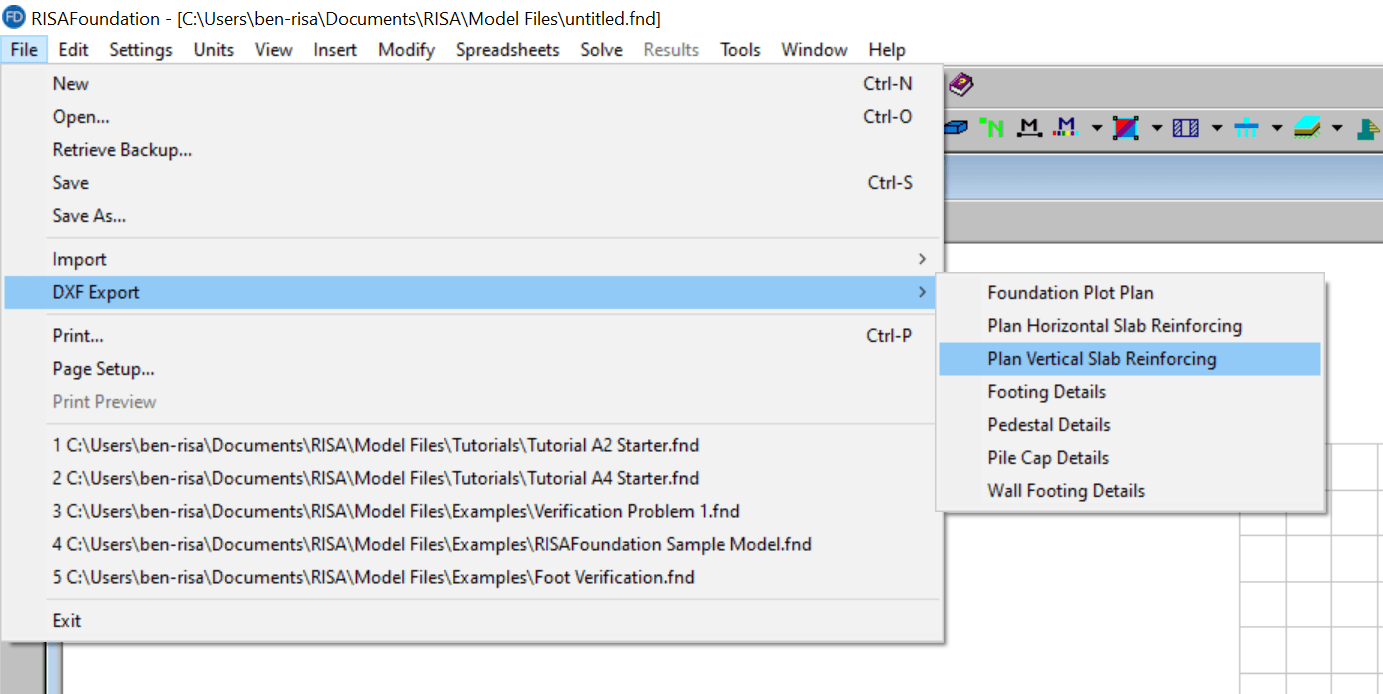

To get more information on the general export process and exporting a Foundation Plan see the article below. The foundation plan will display reinforcement, pile, grade beam, and footing schedules as well.
