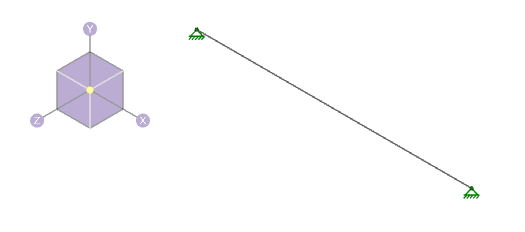

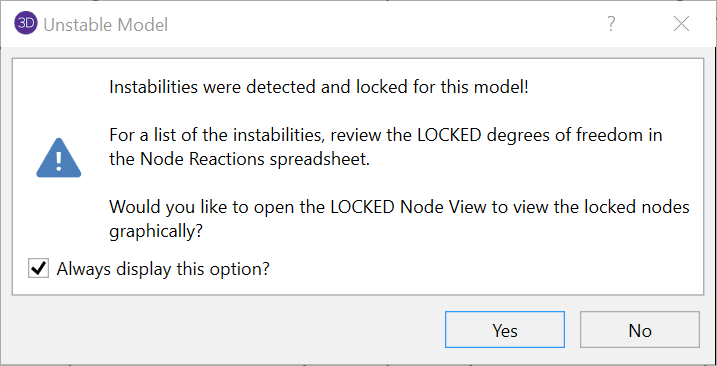

Do you get an instabilities warning when you’re trying to do a simple 2D model in RISA-3D?
Below is the easiest way to test and fix the instability:

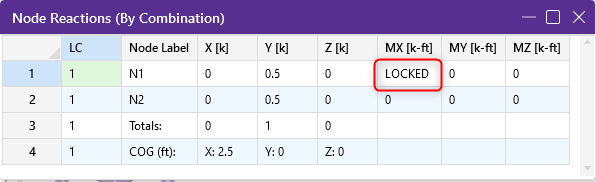

- Open the Node Reactions spreadsheet, and see which joint is unstable.

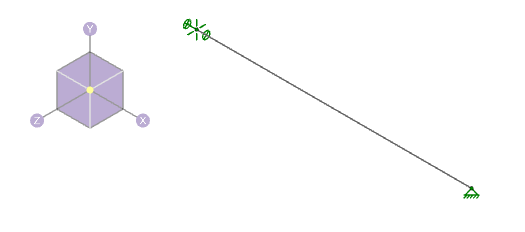

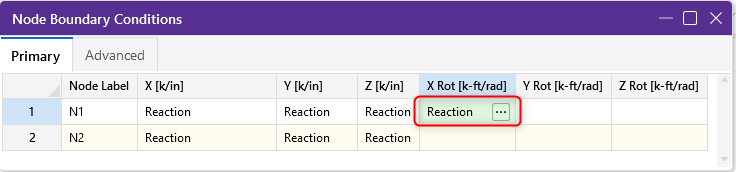

- In the Boundary Conditions spreadsheet, apply a Reaction to the joint in the degree of freedom that was LOCKED.

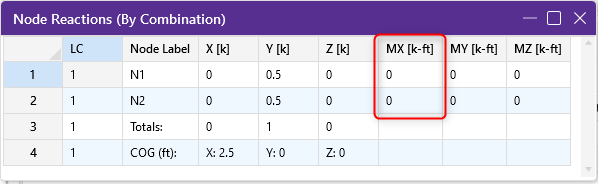

- Re-run the model and examine the Node Reactions.
If the reaction that is restraining the instability is showing a ZERO force or moment, then the instability is inconsequential to the results. Also, if the reaction that is restraining the instability is showing a non-zero force or moment, then you have a problem with the model that must be corrected for you to get valid results.
