Circular pedestals and posts can be added to spread footings in RISAFoundation.

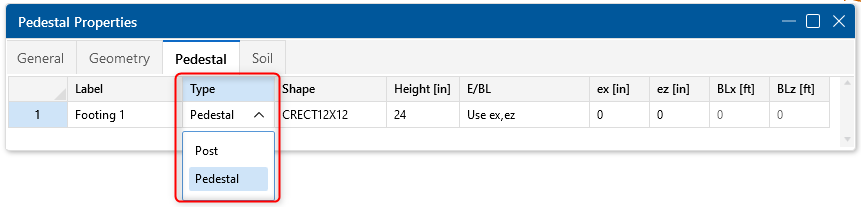

To specify a circular pedestal or post, open up the Footing Definition spreadsheet and select the Pedestal tab. Circular shape can be selected for either the Pedestals or Post type.

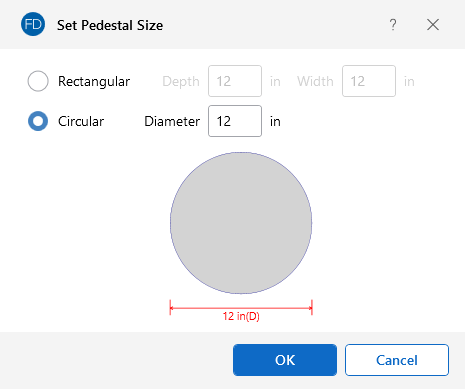

Using Pedestal in this example, from the Shape column you can click the triple dots to launch the Pedestal Size dialog. Then select the circular pedestal option and define a diameter.
The height of the pedestal can be specified under the Height column along with any pedestal eccentricities (ex and ez). Boundaries can also be specified to limit the pedestal eccentricity from the center of the footing (BLx and BLz).

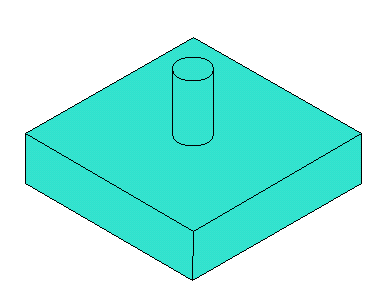

You can then see the circular pedestal displayed on your spread footing after drawing the footing on the graphic interface.
Admin : Aug 31, 2012 12:00:00 AM
RISAFoundation includes a footing element which is represented by a single node. A frequent question that arises is how to apply multiple point...
Admin : Apr 22, 2014 12:00:00 AM

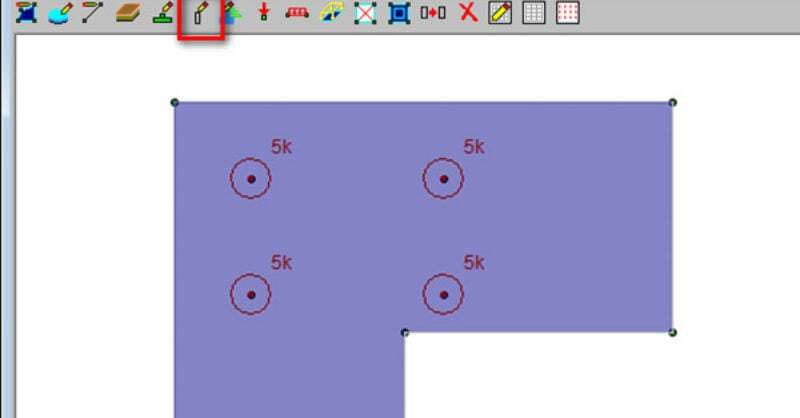

Need to first know how to model a slab on grade? See our Slabs on Grade article to learn how to model slabs on grade:

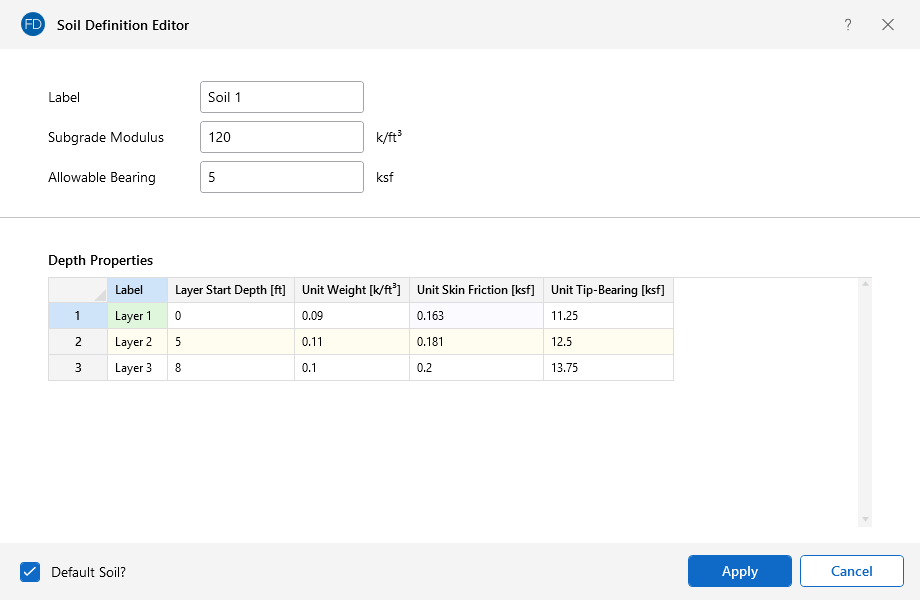

With Pile Design in RISAFoundation, you have the ability to define the default soil properties for the entire model. But also the Soil Definitions...
