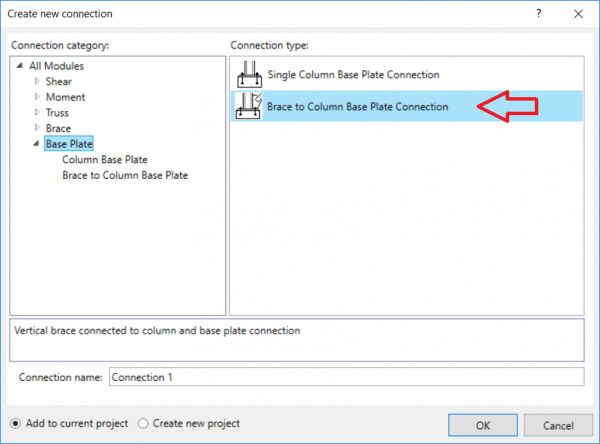

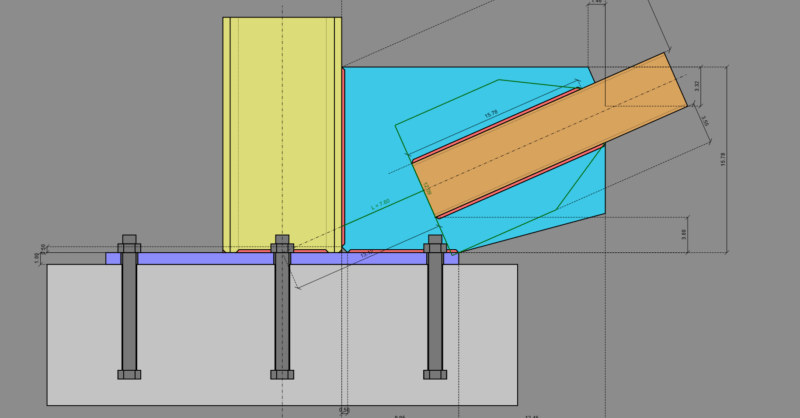

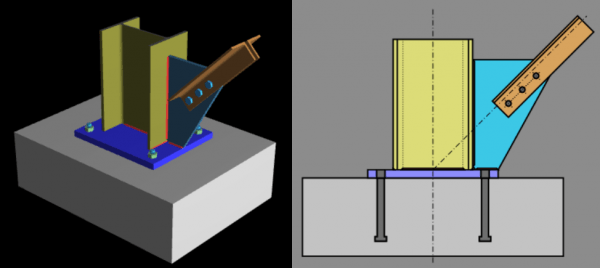

You may now design a Brace to Column Base Plate Connection in RISAConnection v8. This connection type combines the original single column base plate with a gusset from a connected vertical brace member. The connection allows tapered or rectangular gussets that frame into either the column flange or web. The location of the workpoint may also be adjusted to match your exact geometry.

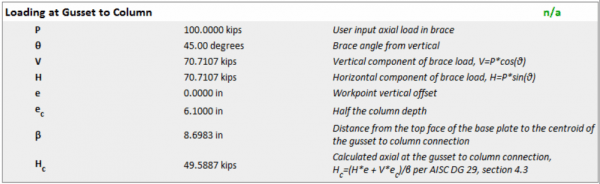

The distribution of loading from the brace to the column and base plate is calculated per the AISC Design Guide 29: Vertical Bracing Connections – Analysis and Design section 4.3.

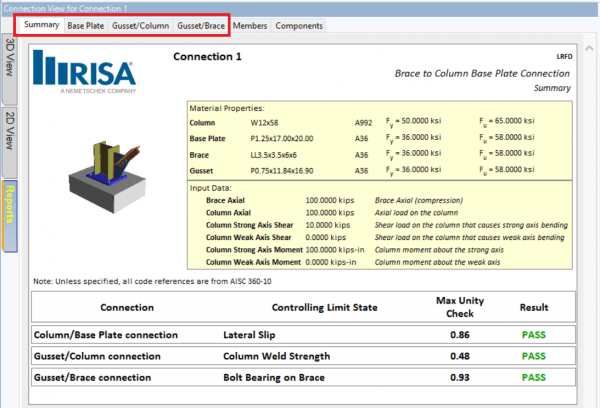

The connection is designed by checking each applicable limit state at each sub-connection interface: the brace to gusset, the gusset to column, and the base plate.
Admin : Apr 19, 2018 12:00:00 AM
RISAConnection Version 8.0 now offers Vertical Brace Diagonal Connections, the Vertical Chevron Brace Connection, and the Knee Brace Connection...
Admin : Mar 9, 2018 12:00:00 AM

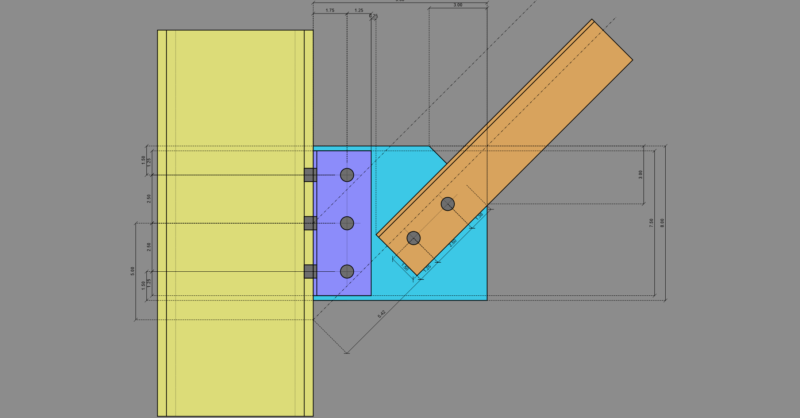

In RISAConnection v8, you may now design a Knee Brace and Diagonal Brace with a tapered gusset plate. One of the greatest benefits is the...
