Concrete Design per ACI 318-14 Concrete Code now Available
Admin : Dec 16, 2015 12:00:00 AM
The new ACI 318-14 code has been implemented into RISA-3D v14, RISAFloor v10, and RISAFoundation v8.

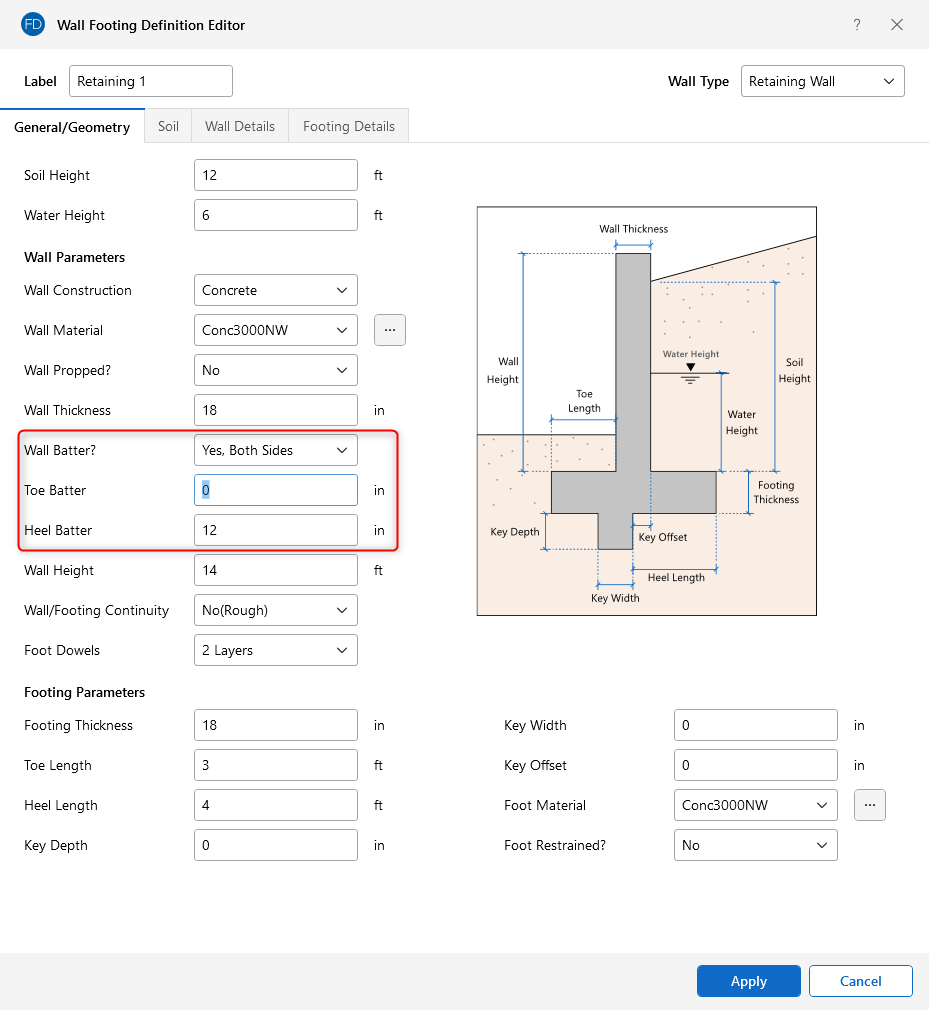

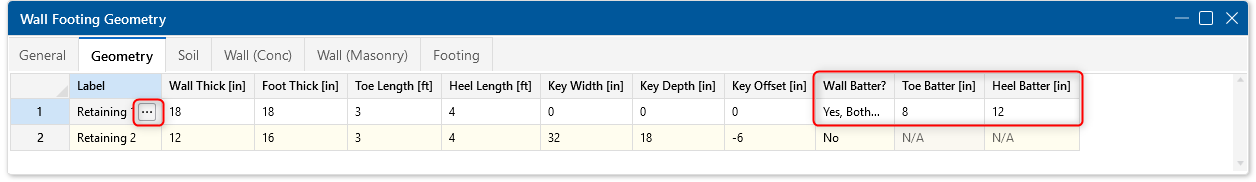

The batter dimensions can be set from Wall Footing Definitions:

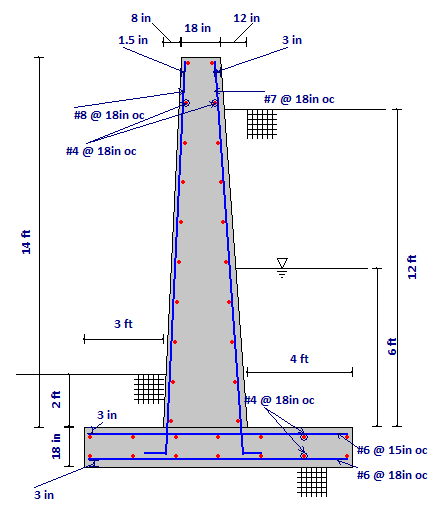

The batter will affect:
-
The depth of wall for shear and bending checks
-
The self-weight of wall
-
Minimum reinforcement checks will be based on the maximum thickness of wall
Gross and Net Soil Pressures
In RISAFoundation, the Allowable Soil Bearing value is controlled by the Soil Region. This value is always taken as a Gross allowable soil...
Vertical Slab and Beam Offsets
In RISAFoundation, you can add a vertical offset for slabs or beams. Traditionally, RISA uses centerline analysis which aligns all elements at...
